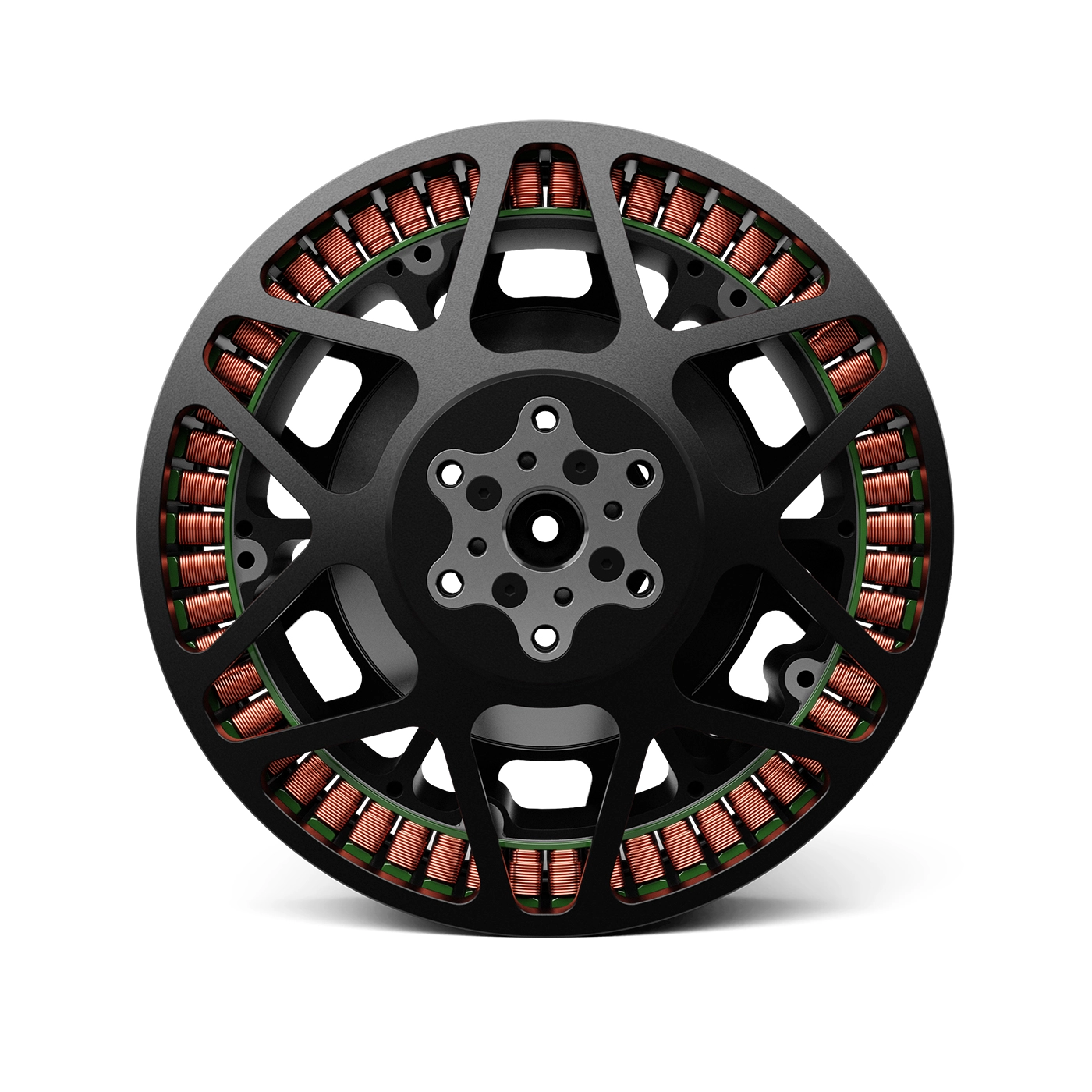

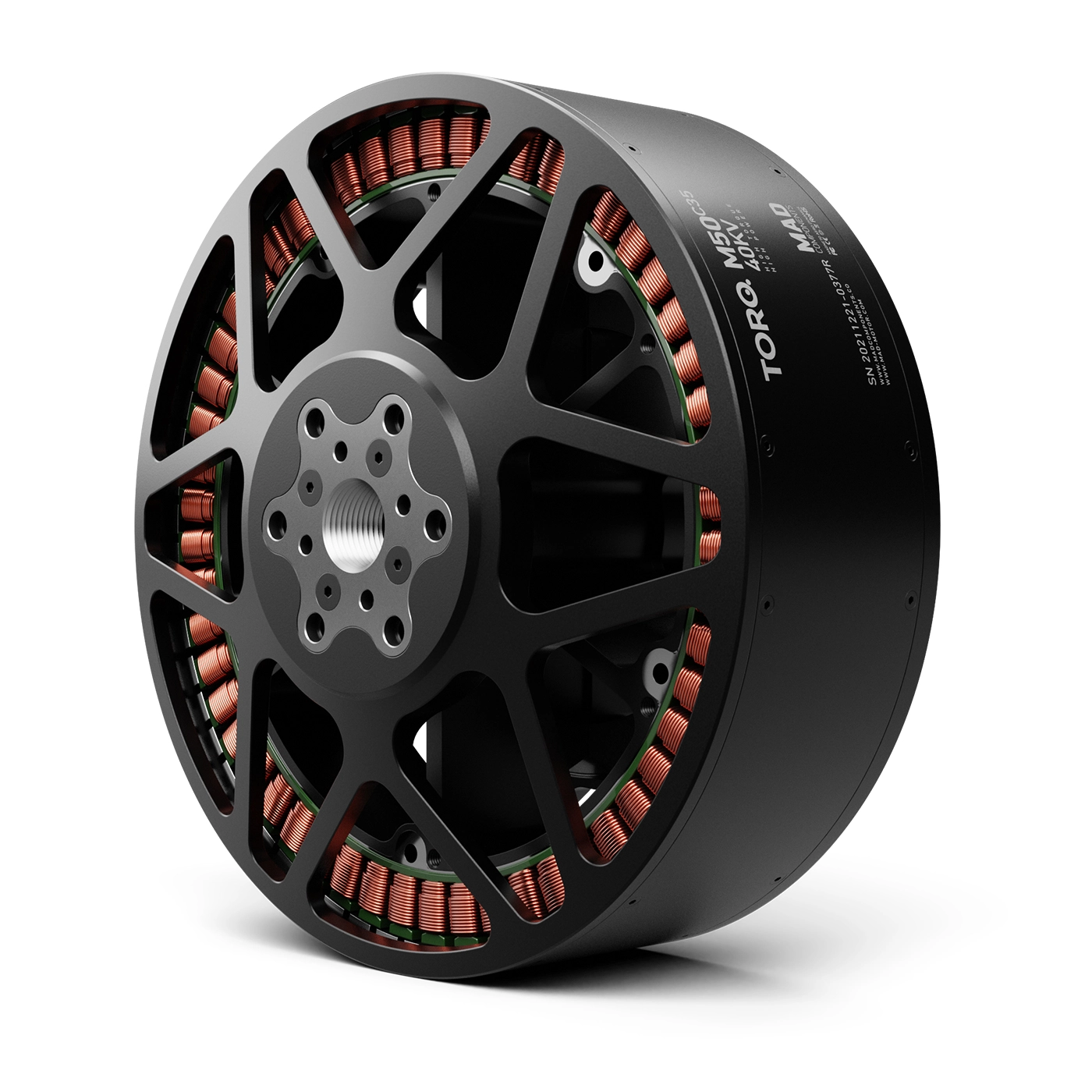

SP140 V2 – Electric Motor
Original price was: $1,199.$1,050Current price is: $1,050.
This is just the standalone motor from the SP140 system. It can be used to build your own systems but requires a motor controller, throttle, and battery to operate. If you’re looking for a conversion kit or a complete ready-to-go system, please check out the power pack or conversion kit.
In stock
Motor Model:Â Openppg M50C35 EEE V2.0 34kv
Number of Pole Pairs: 31
Stator: Anticorrosive varnished wire rated at 220°C
Motor Dimensions: Diameter: 191 mm; Height: 94 mm
Magnet Temperature Rating: 180°C
Degree of Protection: Rain protection
Centrifugal Heat Dissipation: Independent
Rotor Balance: ≤20 mg
Propeller Mounting Holes: Diameter: 50 mm with M6×6 bolts; Diameter: 32 mm with M4×4 bolts
Motor Balance: ≤30 mg
Shaft Diameter: 25 mm
Motor Mounting Holes: Diameter: 80 mm with M6×6 bolts
Bearings: 6905ZZ ×2 / 6818ZZ
Disruptive Test Voltage: 1000 V
This motor is designed for large manned multi-rotors, electric para-gliders, large e-VTOLs, UAVs, para-motors, and para-trikes. It is constructed with industrial-grade components to ensure durability and performance.
